Product Summary

Products Catalog 2024

RESEPI Product Brochure 2023

GPS-Aided Inertial Navigation Systems (INS)

The Inertial Labs Single and Dual Antenna GPS-Aided Inertial Navigation Systems – INS is a new generation of fully integrated, combined L1 & L2 GPS, GLONASS, GALILEO, and BEIDOU navigation and high-performance strapdown system that determines positions, velocity, altitude, heave and absolute orientation (Heading, Pitch, and Roll) for any device on which it is mounted.

INS-DU Inertial Navigation System
INS-DU-OEM Inertial Navigation System
INS-B
GPS Aided INS

LiDAR Remote Sensing Payload Instrument (RESEPI)

LiDAR

The Inertial Labs LiDAR Remote Sensing Payload, RESEPI, is a complete remote sensing solution. The RESEPI was designed for private labeling, so Inertial Labs’ partners can put their branding on both the hardware and software components of the RESEPI.

RESEPI Quanergy M8 LiDAR Scanning - Inertial Labs
RESEPI Ouster OS1-64 LiDAR Scanning - Inertial Labs

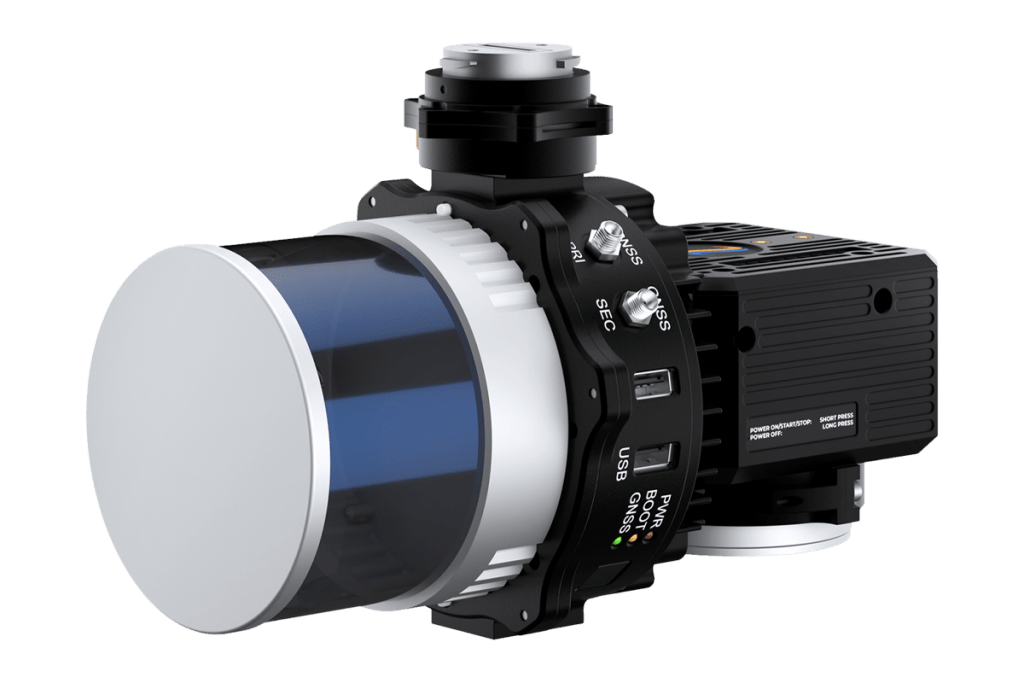

RESEPI Hesai Lidar Scanning XT-32M2X - Inertial Labs

Inertial Measurement Units (IMU)

The Inertial Labs Inertial Measurement Unit is an Advanced MEMS sensors-based, compact, self-contained strapdown inertial measurement system that measures linear accelerations with five micro g Bias in-run stability and angular rates with 1 deg/hr Bias in-run stability.

IMU-KERNEL-110 Inertial Measurement Unit
IMU-FI-200-C-2024
IMU

Motion Reference Units (MRU)

MRU

The Inertial Labs has developed Motion Reference Units (MRU) to meet requirements from marine and hydrographic applications. MRU is an enhanced, high-performance, IP-67 sealed strapdown Motion Sensor that determines Pitch & Roll, Heave, Sway, Surge, acceleration, Angular rates, Heading, Velocity, and Positions for any device on which it is mounted.

Inertial Labs Product - Subsea, Underwater Motion Reference Unit MRU-B1S
Inertial Labs MRU-B2 - Motion Reference Unit - Heave, Surge, Sway, Pitch and Roll Sensor
Inertial Labs MRU-PD - Motion Reference Unit - Professional Dual GNSS Antenna Heave, Surge, Sway, Precise Heading, Pitch, Roll, Position and Velocity Sensor

Wave Sensors (WS)

Inertial Labs has developed Wave Sensors (WS) to meet industry wave statistics requirements which can generate spectral data as a complete set of Fourier coefficients and energies.

Inertial Labs WS-E - Enhanced Wave Sensor - Wave Energy, Spectral Data, Fourier Coefficients, Attitude Sensor
Inertial Labs WS-PD - GNSS-Aided Dual Antenna Heave, Surge, Sway, Dual Antenna Heading, Pitch, Roll, Position and Velocity Sensor

Attitude and Heading Reference Systems (AHRS)

The newest enhanced generation is the Inertial Labs Attitude and Heading Reference System – AHRS. These high-performance strapdown systems determine the absolute orientation (Heading, Pitch, and Roll) and relative Altitude of any device on which it is mounted. Orientation is determined with high accuracy for both motionless and dynamic applications.

AHRS-II-P Attitude and Heading Reference System - Inertial Labs
miniAHRS - Attitude and Heading Reference System - Inertial Labs
OptoAHRS-II Attitude and Heading Reference System - Inertial Labs

Railway Motion Control Unit (RMCU)

The Inertial Labs Railway Motion Control Unit – RMCU is a high-performance strapdown system developed for Railway applications to determine the absolute orientation (Heading, Pitch, and Roll) and motion parameters (Angular Rates and Linear Accelerations) for any Railway Platforms on which it is mounted. Orientation is determined with high accuracy for both motionless and dynamic applications.

The Railway Motion Control Unit – RMCU - Inertial Labs

Two and Three Axis Gyroscopes (TAG)

Tactical

The Inertial Labs Two and Three-Axis Gyroscopes (TAG-200 and TAG-300) are developed for Electro-Optical Systems, Gimbals, Line-of-Sight, and Pan & Tilt Platforms for stabilization and pointing applications. These devices utilize advanced, tactical-grade MEMS sensitive to which size, power consumption, reliability, and performance are ideal for accomplishing complex tasks requiring accurately stabilizing various platforms.

TAG-200 - Two Axis Gyroscopes - Inertial Labs
TAG-300 Three-Axis Gyroscope - Inertial Labs

Three Axis Accelerometers (TAA)

The Inertial Labs MEMS TAA-308, TAA-315 and TAA-340 are the third generation of the Inertial Labs MEMS, three-axis high-precision accelerometers released in a stand-alone design. The TAA-308, TAA-315 and TAA-340 are revolutionary, compact, self-contained, strapdown, Navigation-grade Accelerometers that measure linear accelerations with high precision due to their unique design and developed by Inertial Labs over last 20 years several significant know-know and technics in calibrations of inertial sensors.

TAA-340 - Three Axis Accelerometers - Inertial Labs
TAA-340EC - Three Axis Accelerometers - Inertial Labs
TAA - Three Axis Accelerometers

Digital 3D Orientation and Tilt Sensors (DTS)

The Inertial Labs DTS product family features low-cost, rugged, highly accurate MEMS Digital Tilt Sensors and 3D Magnetic Orientation and Heading Sensors. Designed for research and development platforms, biomedical testing & monitoring, virtual reality and motion tracking, construction equipment, and manufacturing industries dual-purposed for static and dynamic applications.

miniAHRS - Attitude and Heading Reference System - Inertial Labs

Weapon Orientation Modules (WOM)

Using our unique sensor fusion capabilities, Inertial Labs Weapon Orientation Modules include tracking systems with combinations of inertial, optical, celestial, and GPS-related technologies.

OptoWOM-II - Optical Weapons Orientation Module - Inertial Labs
WOM - Weapons Orientation Module - Inertial Labs
