An Inertial navigation system is a self-contained navigation technique in which measurements provided by accelerometers and gyroscopes track the position and orientation of an object relative to a known starting point, direction, and velocity. Inertial measurement units (IMUs) typically contain three orthogonal rate-gyroscopes and three orthogonal accelerometers, measuring angular velocity and linear acceleration, respectively. By processing signals from these devices, it is possible to track the position and orientation of a device.
How does Inertial Navigation work?
The basic principle of inertial navigation is to use accelerometers to measure the acceleration of the object and the gyroscopes to measure the object’s rotation. The accelerometers measure the change in velocity of the object, and the gyroscopes measure the change in orientation of the object. By integrating these measurements over time, it is possible to calculate the position and orientation of the object.
- Inertial measurement units (IMUs) are the core components of inertial navigation systems. IMUs typically contain three orthogonal rate-gyroscopes and three orthogonal accelerometers measuring angular velocity and linear acceleration. By processing signals from these devices, it is possible to track the position and orientation of a device.
- Gyroscopes measure the rotation of an object. The gyroscope is a spinning wheel that can rotate about any axis. When the gyroscope is spinning, it resists any attempt to change its orientation. This property is known as gyroscopic inertia.
- Accelerometers measure the acceleration of an object. The accelerometer is a device that measures the force of gravity acting on it. The accelerometer can measure an object’s velocity change.
- Inertial navigation system use IMU measurements to calculate an object’s position and orientation. The IMU measurements are integrated over time to calculate the velocity and position of the object.
- They are very accurate and can accurately track an object’s position and orientation. However, inertial navigation systems are also sensitive to measurement errors from accelerometers and gyroscopes. These errors can accumulate over time, leading to errors in the calculated position and orientation of the object.
- They are unsuitable for long-range navigation, as measurement errors will eventually accumulate to the point where the system becomes inaccurate.
Advantages of Inertial Navigation
Inertial navigation has several advantages over other navigation techniques, including:
- High accuracy: They are very accurate and can be used to track the position and orientation of an object with high precision.
- Reliable: They are reliable and can continue operating without external references.
- Compact: They are relatively close and can be easily integrated into various devices.
Disadvantages of Inertial Navigation
Inertial navigation also has several disadvantages, including:
- Cost: They can be expensive to purchase and maintain.
- Sensitivity to errors: They are sensitive to measurement errors from the accelerometers and gyroscopes. These errors can accumulate over time, leading to errors in the calculated position and orientation of the object.
- Short range: They are unsuitable for long-range navigation, as measurement errors will eventually accumulate to the point where the system becomes inaccurate.
Applications of Inertial Navigation
Despite their limitations, inertial navigation systems are a powerful navigation technique with many applications. Inertial navigation systems are used in various industries, including aerospace, defense, transportation, and robotics.
Here are some additional details about the applications of inertial navigation systems:
- Aircraft navigation: They can navigate aircraft in all phases of flight, from takeoff to landing. Inertial navigation systems like GPS are used with other navigation systems to provide more accurate and reliable information.
- Marine navigation: They can navigate ships and boats from calm seas too rough oceans. Inertial navigation systems like GPS are used with other navigation systems to provide more accurate and reliable information.
Automotive navigation: They can navigate cars, trucks, and other vehicles on roads and highways. Inertial navigation systems like GPS are used with other navigation systems to provide more accurate and reliable information. - Robotics: They can navigate robots in various environments, from warehouses to factories to homes. Inertial navigation systems, such as cameras and lasers, are used with other navigation systems to provide more accurate and reliable information.
- Spacecraft navigation: They can navigate spacecraft in space. Inertial navigation systems, such as star trackers and sun sensors, are used with other navigation systems to provide more accurate and reliable information.

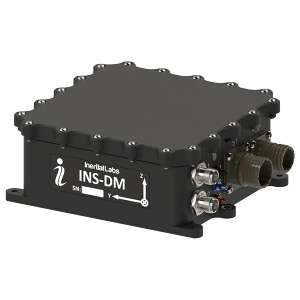

Advantages of Inertial Labs INS products
- High accuracy: Inertial Labs INS products can provide position, velocity, and attitude information with accuracies of up to 0.01 meters, 0.1 meters per second, and 0.1 degrees, respectively.
- Reliable: Inertial Labs INS products are highly reliable navigation systems unaffected by environmental conditions such as weather, terrain, and electromagnetic interference.
- Compact: Inertial Labs INS products are compact, lightweight navigation systems that are easy to install and operate.
- Cost-effective: Inertial Labs INS products are cost-effective navigation systems with high performance and reliability.
These advantages make Inertial Labs INS products a valuable tool for various applications, including aircraft navigation, marine navigation, automotive navigation, robotics, and spacecraft navigation. Whether it’s ensuring precision in aircraft navigation, maintaining course accuracy in marine navigation, enhancing safety in automotive navigation, optimizing performance in robotics, or enabling precision control in spacecraft navigation, our technology delivers reliable and robust solutions to meet the diverse needs of industries across the spectrum. Our commitment to innovation and excellence drives us to continually advance our technology, empowering you to navigate the future confidently. Join us on this journey and discover the limitless possibilities today.
