GPS-Aided INS with Air Data Computer (INS-U)

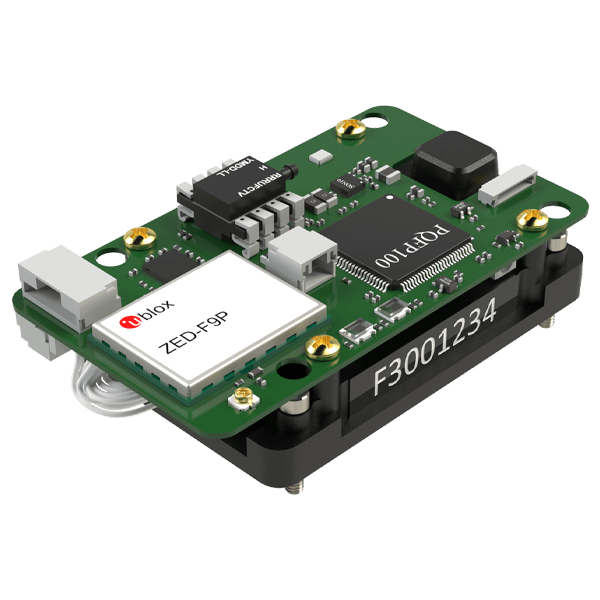

The Inertial Labs GPS-Aided Inertial Navigation System (INS-U, INS-U-OEM) is the new generation, fully integrated, combined Inertial Navigation System (INS) + Attitude & Heading Reference System (AHRS) + Air Data Computer (ADC) high-performance strapdown system, that determines position, velocity and absolute orientation (Heading, Pitch and Roll) for any device on which it is mounted.
Horizontal and Vertical Position, Velocity and Orientation are determined with high accuracy for both motionless and dynamic applications.
The Inertial Labs INS-U utilizes advanced single antenna multi constellation (GPS, GLONASS, GALILEO, QZSS and BEIDOU GNSS) receiver; two Honeywell TruStability® Board Mount Pressure Sensors; a miniature gyro-compensated Fluxgate compass; 3-axes each of calibrated in full operational temperature range Advanced MEMS Accelerometers and Gyroscopes to provide accurate Position, Velocity, Heading, Pitch and Roll of the device under measure.
INS-U contains Inertial Labs new on-board sensor fusion filter, state of the art navigation and guidance algorithms and calibration software.
Key features benefits & functionality
- Commercially exportable GPS-Aided Inertial Navigation System
- 3-in-1 strapdown system: INS + AHRS + ADC (Air Data Computer)
- Embedded in-flight calibration
- Designed for UAV application
- Small size, lightweight & low power
- GPS, GLONASS, GALILEO, BEIDOU, QZSS, RTK supported signals
- Total and Static Pressure Sensors for calculating Indicated Airspeed
- Embedded or External Inertial Labs Magneto-Inductive and Mini-Fluxgate magnetometers (compass)
- GNSS measurements and IMU raw data for post processing
- Advanced, extendable, embedded Kalman Filter based sensor fusion algorithms
- State-of-the-art algorithms for different dynamic motions of Helicopters, and UAV
- Full temperature calibration of all sensing elements
- Aiding data: Wind sensor, Air Speed Sensor, External position and External Heading
INS-U Main Specifications
| Parameter | INS-U / INS-UOEM |
|---|---|
| Heading Accuracy | 0.6° static / 0.3° dynamic |
| Position Accuracy | 1cm (RTK) |
| Pitch & Roll Accuracy | 0.05° dynamic, 0.08° static |
| GNSS Constellations | BDS, GAL, GLO, GPS, QZSS |
| Corrections | DGPS, RTK, SBAS |
| Magnetometer | Embedded Mini-Fluxgate Magnetometer |
| Other Features | Static & Dynamic Pressure, Airspeed, Mach Number, True Angle of Attack (ADC) |
| Size (mm) |
INS-U: 82x40x26 INS-U-OEM: 65.0x37.2x19.9 |
| Weight (gram) |
INS-U: 200 INS-U-OEM: 100 |
